Descripción
|
Product range
|
RMQ-Titan | ||
|

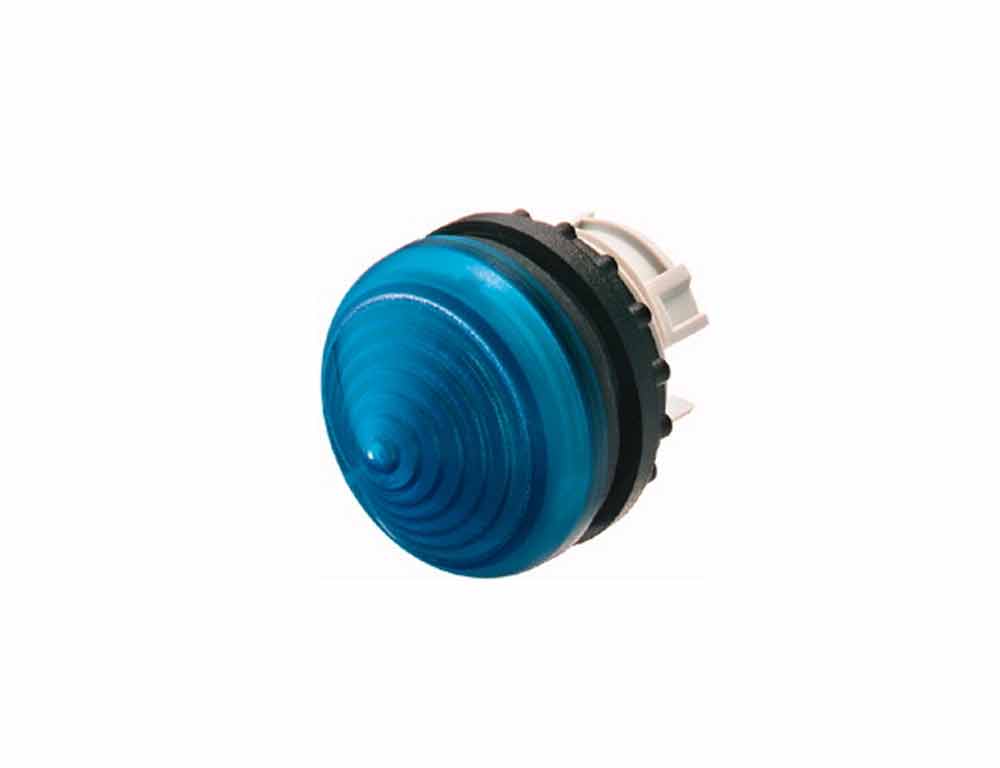

Basic function
|
Indicator lights | ||
|
Single unit/Complete unit
|
Single unit | ||
|
Design
|
Extended, conical | ||
|
Colour
|
|||
|
Lens
|
Blue | ||
|
Degree of Protection
|
IP66, IP67, IP69K | ||
|
Connection to SmartWire-DT
|
yes with SWD-RMQ connections |
||
|
Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1
|
|||
|
Minimum force for positive opening
|
N | 0 | |
|

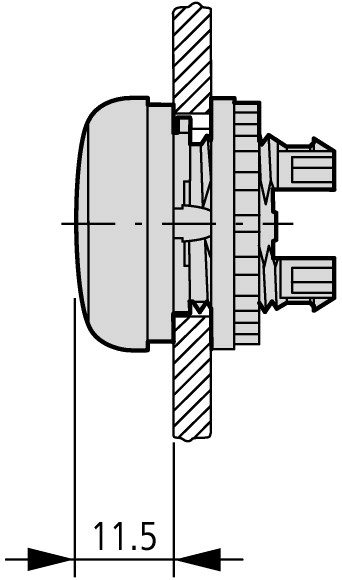

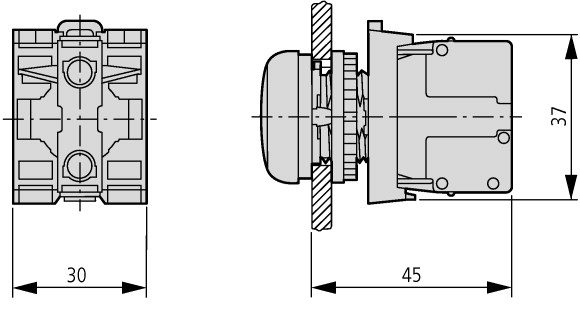

Front dimensions
|
29,7 |
Technical data
| General | |||
|
Standards
|
IEC/EN 60947 VDE 0660 |
||
|
Climatic proofing
|
Damp heat, constant, to IEC 60068-2-78 Damp heat, cyclic, to IEC 60068-2-30 |
||
|
Degree of Protection
|
IP66, IP67, IP69K | ||
|
Ambient temperature
|
|||
|
Open
|
°C | -25 – +70 | |
|
Mounting position
|
As required | ||
|
Mechanical shock resistance
|
g | 30 Shock duration 11 ms Sinusoidal according to IEC 60068-2-27 |
|
|
Terminal capacities
|
mm2 | ||
|
Solid
|
mm2 | 0.5 – 1.5 | |
|
Stranded
|
mm2 | 0.5 – 1.5 | |
| Contacts | |||
|
Rated impulse withstand voltage
|
Uimp | V AC | 4000 |
|
Rated insulation voltage
|
Ui | V | 250 |
|
Overvoltage category/pollution degree
|
III/3 | ||
