Descripción
|
Product range
|
RMQ-Titan | ||
|
Basic function
|

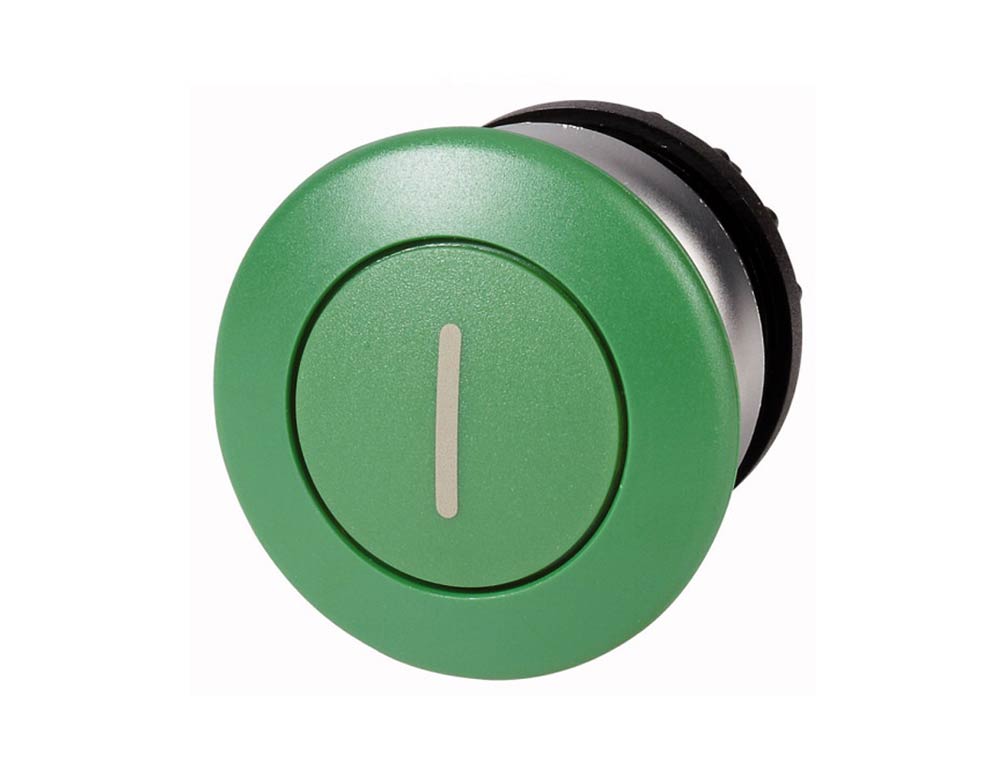

Mushroom-headed pushbutton | ||
|
Single unit/Complete unit
|
Single unit | ||
|
Design
|
Mushroom | ||
| maintained | |||
|
Colour
|
|||
|
Mushroom
|
green | ||
|
Button plate
|
|||
|
button plate
|
green | ||
| inscribed | |||
|
Degree of Protection
|
IP66, IP67, IP69K | ||
|
Front ring
|
Bezel: titanium | ||
|
Connection to SmartWire-DT
|
yes with SWD-RMQ connections |
||
|
Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1
|
|||
|
Minimum force for positive opening
|
N | 0 | |
|

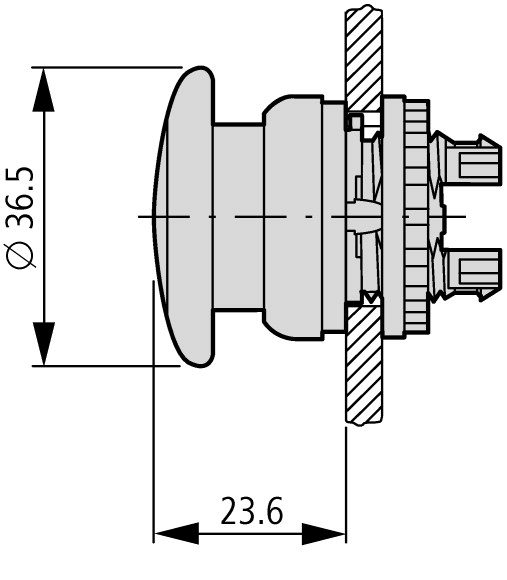

Front dimensions
|
22 x 22 | ||
|
Function
|
maintained | ||
|
Instructions
|
Stay-put/spring-return function can be changed on device |
