Descripción
|
Product range
|

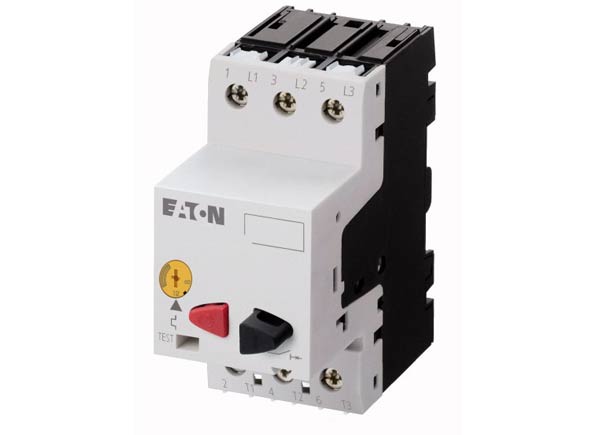

PKZM01 motor protective circuit-breakers up to 16 A with pushbutton actuation | ||
|
Basic function
|
Motor protection | ||
|
Notes
|
Also suitable for motors with efficiency class IE3. IE3-ready devices are identified by the logo on their packaging. |
||
|
Connection technique
|
Screw terminals | ||
|
Max. motor rating
|
|||
|
AC-3
|
|||
|
220 V 230 V 240 V
|
P | kW | 0.25 |
|
380 V 400 V 415 V
|
P | kW | 0.55 |
|
440 V
|
P | kW | 0.55 |
|
500 V
|
P | kW | 0.75 |
|
660 V 690 V
|
P | kW | 1.1 |
|
Rated uninterrupted current
|
Iu | A | 1.6 |
|
Setting range
|
|||
|
Overload releases
|
Ir | A | 1 – 1.6 |
|
short-circuit release
|
|||
|
max.
|
Irm | A | 24.8 |
|
Phase-failure sensitivity
|
IEC/EN 60947-4-1, VDE 0660 Part 102 |
