Descripción
|
Basic function
|

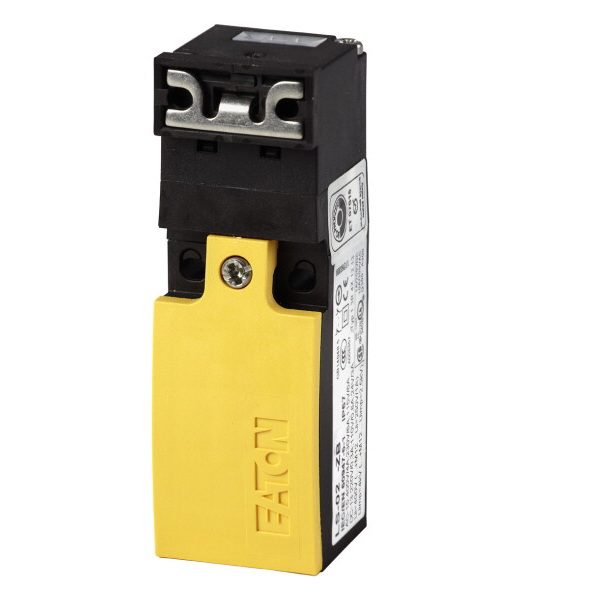

Position switches Safety position switches |
||
|
Part group reference
|
LS(4)…ZB | ||
|
Product range
|
Safety position switches | ||
| Degree of Protectio | ⌀ | — | IP66 |
|
Features
|
Complete unit | ||
| Description | With the actuator inserted, the N/O contact is open and the NC contact is closed. | ||
| N/C = Normally closed | 2NC | ||
| Notes |  = safety function, by positive opening to IEC/EN 60947-5-1 |
||
| Housing | ⌀ | — | Insulated material |
| Connection type | Screw terminal | ||
|
Notes
|
Switch must never be used as a mechanical stop!
Actuator can be repositioned for horizontal or vertical mounting. The operating heads can be turned manually in 90° steps to suit the specified level of actuation. With the actuator inserted, the N/O contact is open and the N/C contact is closed. For degree of protection IP65, use V-M20 (206910) cable glands with connecting thread of max. 9 mm length. The operating heads can be turned manually in 90° steps to suit the specified level of actuation.
With the actuator inserted, the N/O contact is open and the N/C contact is closed. For degree of protection IP65, use V-M20 (206910) cable glands with connecting thread of max. 9 mm length. |
