Descripción
|
Product range
|
Accessories | ||
|
Accessories
|
Auxiliary contact modules | ||
|
Description
|
with interlocked opposing contacts | ||
|
Function
|
for standard applications | ||
|
Number of poles
|
2 pole | ||
|
Connection technique
|
Screw terminals | ||
|
Rated operational current
|
|||
|
Conventional free air thermal current, 1 pole
|
|||
|
Open
|
|||
|
at 60 °C
|
Ith | A | 10 |
|
AC-15
|
|||
|
220 V 230 V 240 V
|
Ie | A | 4 |
|
380 V 400 V 415 V
|
Ie | A | 4 |
|
380 V 400 V 500 V
|
Ie | A | 4 |
|
Contacts
|
|||
|
N/O = Normally open
|
1 N/O | ||
|
N/C = Normally closed
|
1 NC | ||
|
Mounting type
|
Side mounted | ||
|
For use with
|
DILM250 – DILH2600 DILDC300 – DILDC600 |
||
|
Type
|

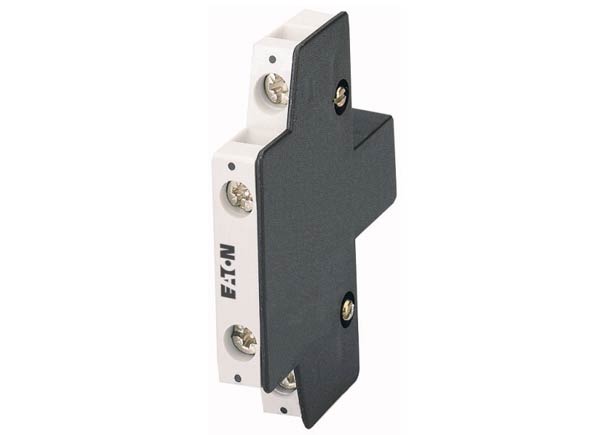

Side-mounting auxiliary contacts | ||
|
Instructions
|
Interlocked opposing contacts according to IEC/EN 60947-5-1 Appendix L, inside the auxiliary contact module Auxiliary contacts used as mirror contacts according to IEC/EN 60947-4-1 Appendix F (not N/C late open) |
