Descripción
|
Product range
|

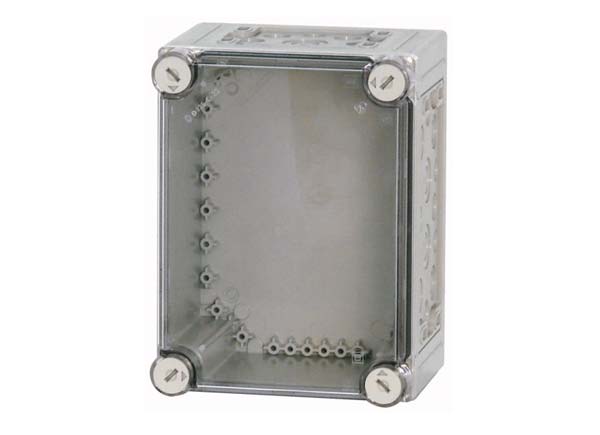

Ci insulated enclosures | ||
|
Basic function
|
Basic enclosures | ||
|
Product function
|
Individual enclosures | ||
|
Single unit/Complete unit
|
Single unit | ||
|
Degree of Protection
|
IP65 | ||
|
Description
|
With metric knockouts in all sides of the enclosure Include fixing straps for wall mounting Sealable cover fasteners Full-area knockouts in the sides can be converted to a distribution board enclosure |
||
|
Colour
|
RAL 7032, pebble grey (base) transparent, opaque (cover) |
||
|
Width
|
mm | 187.5 | |
|
Height
|
mm | 250 | |
|
Depth
|
mm | 150 | |
|
Mounting depth with mounting plate
|
mm | 125 | |
|
Mounting depth for mounting rail 7.5 mm height
|
mm | 117.5 | |
|
Mounting depth for mounting rail 15 mm height
|
mm | 110 | |
|
Enclosure depth
|
|||
|
Legend for the graphic
|
Dimensions from top: Mounting depth with mounting plate Mounting depth for mounting rail 7.5 mm height Mounting depth for mounting rail 15 mm height Enclosure depth |
||
|
Type cover
|
Transparent | ||
|
Model base
|
knockout | ||
|
For use with
|
PKZM0-…/S(E)00 +NHI or NHI…S +NHI-E +U or A (undervoltage or shunt release) +R(H) +L-PKZ0 (2 off |
